Endurance Installation Assembly

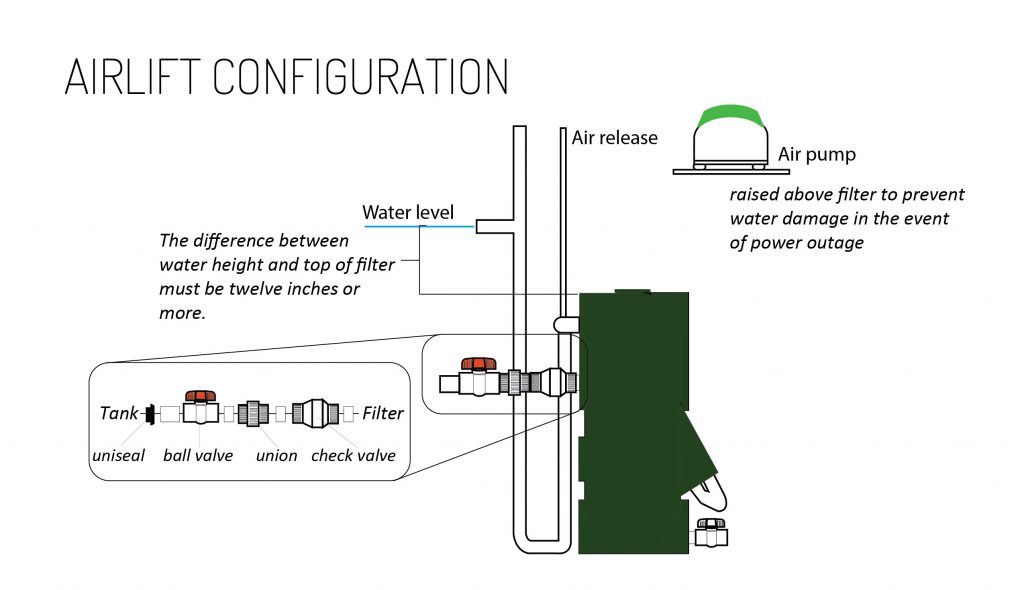

Airlift Endurance Setup

Water-Pumped Endurance Setup

Water pumped units require an air pump to power the auto-pneumatic backwashing sequence. Diagrams below include an optional UV sterilizer. UVs are recommended for applications requiring high water clarity, such as koi ponds.

Quick Start Setup Guide

Pneumatic Sludge Discharge
