AST FIT™ 400 Modular Series

Modular Plug and Play System Sized to Your Needs

Our FIT 400 Modular system is an integrated unit that consists of a tank and filter sized specifically for your application!

At its most basic, this system is a 400 gallon tank utilizing a built-in PolyGeyser® filter. Need more than 400 gallons? Additional units can be added to fit your required tank volume. These modular units can be configured as tanks, filters, or a combination depending on your application. Link up as many as seven units for a system volume of 2800 gallons in one filtration unit.

Redundancy Simplified

Air systems are vital to keeping fish alive when an emergency strikes. Since you only need air to operate our FIT Systems, you can just purchase an extra air blower or two.

Conserve water. Save money.

The patented Polygeyser® filter technology separates the filtered solids into a concentrated sludge chamber. The filter constantly recycles its own backwash water so only the sludge is removed when necessary, resulting in large water savings. Plus, the backwashing process is automated for easy maintenance.

Get an Integrated Filtration System

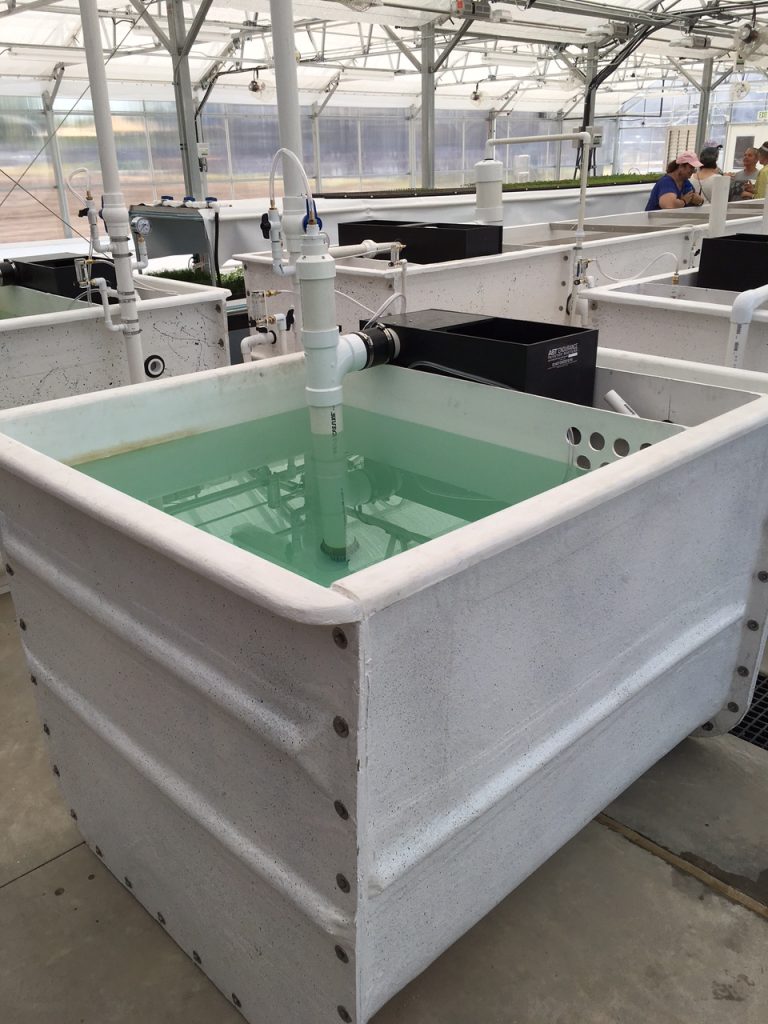

Pictured is an AST FIT 400 unit used to raise new fingerlings for a large aquaponics system.

Our FIT Systems will keep your fish healthy.

The integrated filtration system breaks down harmful fish waste. Using airlift technology, these tanks don’t require a water pump for filtration and/or circulation. The air pumps configured in our systems provide energy savings of up to 60% compared to typical water pumps.

System Benefits:

  • Filter & tank in one unit for easy setup
  • Integrated mechanical and biofiltration in a small footprint
  • Auto-pneumatic backwash enables the filter to operate for extended periods of time without intervention, saving time and labor
  • Operates on low pressure air supply, no water pumps necessary
  • Far less water loss during backwashing process
  • Reliable engineering with no moving parts

Video Resources

AST FIT 400: Anatomy of Filter-in-Tank Systems

AST FIT 400: Powerful PolyGeyser Backwash Demonstration

Raising Whiteleg Shrimp RAS in a FIT System

Filter Specifications

Denver Aquaponics Project

View of both FIT 2800 Models and grow beds

View of FIT 2800 Model

View of FIT 400 Model

AST partnered with Colorado Aquaponics and the Mental Health Center of Denver’s Dahlia Campus for Health and Well-Being to bring a unique take on Horticultural Therapy (HT) to Colorado. We created a state-of-the-art system that allows patients to interact with an aquaponics garden and experience the healing elements of nature. The system will allow patients to go beyond simple gardening and learn how to raise both fish and plants in a symbiotic system.

The aquaponics system works by pulling water from the hydroponic plants and then piping it through to the fish and back again. The volume of water that enters the fish tanks will displace an equal volume of water out to the garden, supplying the plants with nitrogen-rich fertilizer from the fish waste. We used two of filter models for the project; two FIT 400 units for the new fingerlings and two FIT 2800 units to create the primary, custom system that will be used by the Denver Mental Health Center to help with patient therapy and grow food for the community for years to come.

Let's Discuss Your Project

From a simple filter to a complete custom system, our engineers can help you find the perfect filtration system for your needs. Get in touch today!
